One, AudleyPiezoelectric photo machineOily sprinkler treatment method
If the nozzle is cleaned well and the waveform is normal, the nozzle test in a channel can only produce a dozen or more nozzles, which can be treated as follows:
1Take a small pot80Degree or80Hot water above degrees Celsius.
2Put the cleaning liquid bottle into the hot water basin, and the cleaning liquid bottle cap must be tightened.
3, preheat5Take it out after more than minutes, and remove the bad nozzle.
4Use a small needle cylinder to eliminate the residual ink of the nozzle, and the force must be light and slow.
5Use a small needle to ingest the hot cleaning liquid, clean the nozzle downward, pay attention to the residual ink, cleaning liquid can not splash the nozzle circuit part, the force must be light and slow.
6Clean back and forth more than three times to see whether the state of the spray hole is blocked and inclined spray.
7After cleaning, remove the residual cleaning liquid from the nozzle with a small needle barrel, and wipe the residual ink on the edge of the nozzle with a paper towel.
8On the machine test, first pumping ink one to two times (pipeline shaking, pumping ink sound smaller is better), and then cleaning three times to play the nozzle test to see the state of the nozzle, pumping magic strength25-35The better.
9Print various color blocks (black, blue, red, yellow, green, product, blue), so that the residual cleaning liquid in the nozzle is removed with the ink.
10If there are still a few spray holes that do not come out, you can turn off the ink when pumping, and tie the waste ink tube with a cable tie. Sealing nozzle2An hour or2After more than one hour cleaning test.
Second, water-based sprinkler treatment method
If the nozzle is cleaned well and the waveform is normal, the nozzle test in a channel can only produce a dozen or more nozzles, which can be treated as follows:
1Take a small pot80Degree or80Hot water above degrees Celsius.
2Put the alcohol bottle with higher alcohol content into the hot water basin, and the alcohol bottle cap must be tightened. Medical alcohol is acceptable.
3, preheat5Take it out after more than minutes, and remove the bad nozzle.
4Use a small needle cylinder to eliminate the residual ink of the nozzle, and the force must be light and slow.
5Use a small syringe to ingest hot alcohol, clean the nozzle downward, pay attention to the residual ink, alcohol can not splash the nozzle circuit part, the force must be light and slow.
6Clean back and forth more than three times to see whether the state of the spray hole is blocked and inclined spray.
7After cleaning, remove the residual alcohol from the nozzle with a small syringe, and wipe the residual ink on the edge of the nozzle with a paper towel.
8On the machine test, first pumping ink one to two times (pipe shaking, pumping ink sound smaller is better), and then cleaning three times to play the nozzle test to see the state of the nozzle, pumping magic strength25-35The better.
9Print various color blocks (black, blue, red, yellow, green, product, blue), so that the residual alcohol in the nozzle is removed with the ink.
10If there are still a few spray holes that do not come out, you can turn off the ink when pumping, and tie the waste ink tube with a cable tie. Sealing nozzle2An hour or2After more than one hour cleaning test.
5Color sequence of the replacement nozzle
K1 K2 C1 C2 M1 M2 Y1 Y2
7Color sequence of the replacement nozzle
K1 K2 Y1 Y2 K1 K2 Y1 Y2
C1 M1 C2 M2 C1 M1 C2 M2
10Sprinkler color sequence
K1 K2 C2 M1 Y1 Y2 LC2 LM1
C1 M2 LC1 LM2
Henan Aoli Digital Technology Co., Ltd. from the heat transfer printing banner machine to the present hot stamping machine, heat sublimation flag machine, heat transfer machine, plate hot stamping machine, etc., market sales are growing rapidly, welcome to inquire.

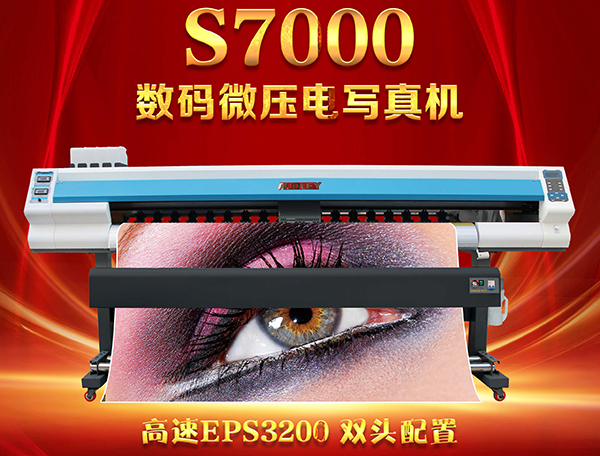

High speed sprinkler :I3200 high speed sprinkler, compatibility: weak solvent, water, thermal sublimation, UV Dual-head configuration: true high-speed printing, 75 square per hour; Control system: the most stable domestic board control system; Silent linear guide: imported silent linear guide, more stable machine movement 1 longer service life; Anti-scratch device: prevent the material from lifting the scratch nozzle, effectively protect the nozzle; Intelligent heating: Dual infrared heating: reduce drying time, speed up paper delivery efficiency, ensure high-speed printing; New frame design: mold appearance new aluminum alloy body structure design, effectively improve the picture printing quality; The height of the trolley frame adjustment: according to the thickness of the material, adjust the height of the nozzle, convenient for users to use more media; Silent linear guide: imported silent linear guide, more stable machine movement, longer service life;
